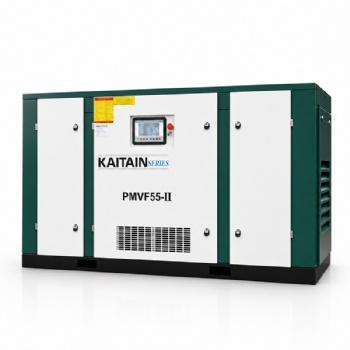

Kaishan JN Series Variable Frequency Two-stage Screw Air Compressor

EMAIL US INQUIRY

开山牌JN系列永磁变频两极压缩螺杆压缩机参数
开山牌JN系列永磁变频两极压缩螺杆压缩机参数
Kaishan JN Series Variable Frequency Two-Stage Compression Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(kW) Power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height
PMVF100-6-II	0.6	16.55	75	DN65	2220	2760	1630	1735
PMVF100-7-II	0.7	15.80	75	DN65	2220	2760	1630	1735
PMVF100-8-II	0.8	14.65	75	DN65	2220	2760	1630	1735
PMVF100-10-II	1.0	13.70	75	DN65	2220	2760	1630	1735
PMVF120-6-II	0.6	21.68	90	DN80	2700	2760	1630	1735
PMVF120-7-II	0.7	20.15	90	DN80	2700	2760	1630	1735
PMVF120-8-II	0.8	19.25	90	DN65	2680	2760	1630	1735
PMVF120-10-II	1.0	16.48	90	DN65	2680	2760	1630	1735
PMVF150-6-II	0.6	25.54	110	DN80	3000	3070	1810	1800
PMVF150-7-II	0.7	24.02	110	DN80	3000	3070	1810	1800
PMVF150-8-II	0.8	23.00	110	DN80	3000	3070	1810	1800
PMVF150-10-II	1.0	20.10	110	DN80	3000	3070	1810	1800
PMVF180-6-II	0.6	32.88	132	DN100	4050	3300	1810	2080
PMVF180-7-II	0.7	28.55	132	DN100	3150	3070	1810	2080
PMVF180-8-II	0.8	26.90	132	DN80	3050	3070	1810	1800
PMVF180-10-II	1.0	23.94	132	DN80	3050	3070	1810	1800
PMVF215-6-II	0.6	38.07	160	DN100	4700	3660	1980	2100
PMVF215-7-II	0.7	36.60	160	DN100	4700	3660	1980	2100
PMVF215-8-II	0.8	34.31	160	DN100	4700	3660	1980	2100
PMVF215-10-II	1.0	28.46	160	DN100	4700	3660	1980	2100
PMVF250-6-II	0.6	45.26	185	DN100	5070	3660	1980	2230
PMVF250-7-II	0.7	41.10	185	DN100	4860	3660	1980	2100
PMVF250-8-II	0.8	39.80	185	DN100	4860	3660	1980	2100
PMVF250-10-II	1.0	34.31	185	DN100	4860	3660	1980	2100
PMVF270-6-II	0.6	47.90	200	DN100	4950	3660	1980	2230
PMVF270-7-II	0.7	45.28	200	DN100	4950	3660	1980	2230
PMVF270-8-II	0.8	43.12	200	DN100	4950	3660	1980	2100
PMVF270-10-II	1.0	36.60	200	DN100	4950	3660	1980	2100
PMVF295-6-II	0.6	55.90	220	DN100	6120	3890	2160	2250
PMVF295-7-II	0.7	50.26	220	DN100	6120	3890	2160	2250
PMVF295-8-II	0.8	47.48	220	DN100	5450	3890	2160	2250
PMVF295-10-II	1.0	41.02	220	DN100	5450	3890	2160	2250
PMVF335-6-II	0.6	59.70	250	DN125	6700	3890	2160	2250
PMVF335-7-II	0.7	56.00	250	DN125	6700	3890	2160	2250
PMVF335-8-II	0.8	52.50	250	DN100	6320	3890	2160	2250
PMVF335-10-II	1.0	45.00	250	DN100	6320	3890	2160	2250
PMVF375-6-II	0.6	64.80	280	DN125	7100	4110	2310	2350
PMVF375-7-II	0.7	63.20	280	DN125	7100	4110	2310	2350
PMVF375-8-II	0.8	60.50	280	DN125	7100	4110	2310	2350
PMVF375-10-II	1.0	55.70	280	DN125	7100	4110	2310	2350
PMVF420-7A-II	0.7	64.50	315	DN125	7100	4110	2310	2350
PMVF420-8A-II	0.8	63.00	315	DN125	7100	4110	2310	2350
PMVF420-6-II	0.6	73.30	315	DN125	8100	4110	2370	2525
PMVF420-7-II	0.7	66.70	315	DN125	8100	4110	2370	2525
PMVF420-8-II	0.8	64.80	315	DN125	7000	4110	2310	2350
PMVF420-10-II	1.0	59.10	315	DN125	7000	4110	2310	2350
PMVF475-6A-II	0.6	77.00	355	DN125	8200	4110	2370	2525
PMVF475-7A-II	0.7	73.20	355	DN125	8200	4110	2370	2525
PMVF475-8A-II	0.8	69.90	355	DN125	7100	4110	2310	2350
PMVF475-10A-II	1.0	62.10	355	DN125	7100	4110	2310	2350
PMVF475-6-II	0.6	80.90	355	DN150	11650	4350	2200	2580
PMVF475-7-II	0.7	77.20	355	DN150	11650	4350	2200	2580
PMVF475-8-II	0.8	73.00	355	DN150	11650	4350	2200	2580
PMVF475-10-II	1.0	64.50	355	DN150	10750	4350	2200	2580
PMVF535-7-II	0.7	86.70	400	DN150	11780	4350	2200	2580
PMVF535-8-II	0.8	80.50	400	DN150	11780	4350	2200	2580
PMVF535-10-II	1.0	73.20	400	DN150	11780	4350	2200	2580
PMVF600-8-II	0.8	92.60	450	DN150	11900	4350	2200	2580
PMVF600-10-II	1.0	80.20	450	DN150	11900	4350	2200	2580
