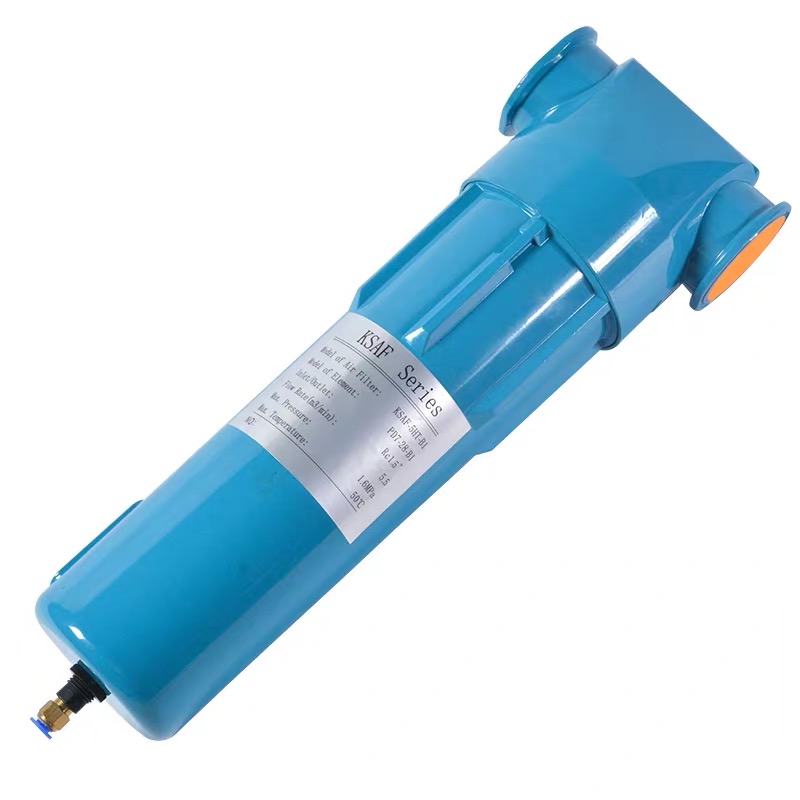

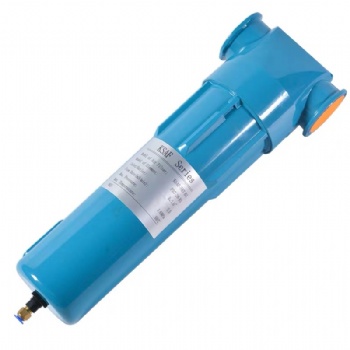

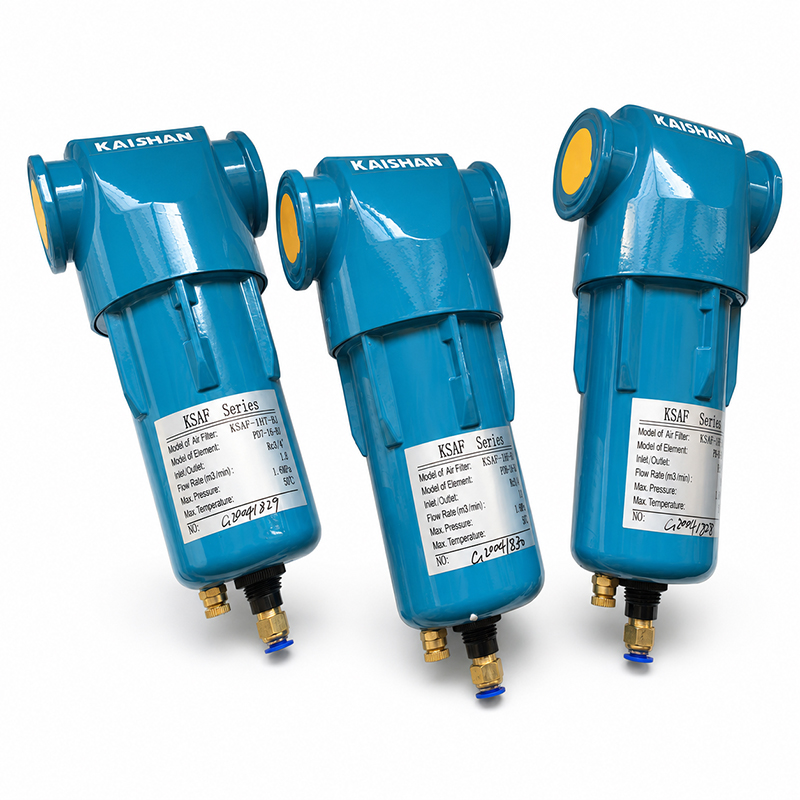

Kaishan Line Filter

Kaishan Line Filter Specifications

型号
Model

接口
Connection size

处理量(Nm³/min)
Flow rate

滤芯数量
Amount of filters

Φ(mm)
Diameter

宽(mm)
Width

高(mm)
Height

重量(kg)
Weight

外形图
Drawing

KSAF-1

G¾

1.2

1

96

200

2.8

KSAF-2

G1

2.5

1

96

235

3.8

KSAF-3

G1

3.6

1

138

331

4.8

KSAF-5

G1½

5.5

1

138

432

5.8

KSAF-6

G1½

6.8

1

138

432

5.8

KSAF-12

G2

12.0

1

174

533

7

KSAF-15

G2½

16.0

1

254

710

10.5

KSAF-20

G2½

22.0

1

254

790

11.3

KSAF-25

DN80

26.8

1

159

399

1250

62

KSAF-30

DN80

32.0

2

219

459

985

70

KSAF-40

DN100

43.5

2

219

459

1130

76

KSAF-50

DN100

53.0

3

273

513

1213

109

KSAF-60

DN125

67.0

3

273

573

1270

115

KSAF-80

DN125

90.0

4

325

565

1163

144

KSAF-100

DN150

110.0

5

412

670

1236

144

KSAF-120

DN150

130.0

5

412

670

1434

144

KSAF-150

DN200

160.0

7

462

762

1543

222

KSAF-200

DN200

210.0

9

462

762

1543

251

KSAF-250

DN250

250.0

11

512

824

1765

287

KSAF-300

DN250

300.0

13

562

862

1800

323

KSAF-350

DN300

350.0

16

662

1100

1880

376

KSAF-400

DN300

400.0

18

662

1100

1880

376

KSAF-450

DN350

450.0

21

712

1012

1915

626

KSAF-500

DN350

500.0

23

712

1012

1980

628

KSAF-550

DN400

550.0

26

812

1096

2091

493

KSAF-600

DN400

600.0

28

812

1116

2000

740
