Kaishan JN Series Two-stage Compression Screw Air Compressor

The Kaishan compressor utilizes a two-stage compression main engine, featuring two sets of SKY screw rotors in varying sizes. This design achieves optimal pressure distribution and reduces the compression ratio for each stage, resulting in exceptional efficiency and longevity. By adopting a low compression ratio, this system offers two key benefits: 1) minimized internal leakage that significantly boosts volumetric efficiency, and 2) reduced bearing stress, enhancing bearing longevity and extending the lifespan of the main engine.
A standout feature of the Kaishan compressor is its world-leading "T" patent molded rotor lines, developed by Dr. Tang Yan, a Global Experts Recruitment Program recipient. These rotor lines deliver industry-leading efficiency, offering 5-15% savings compared to conventional designs. Additional innovations in product detailing, system optimization, and high-end configurations further improve efficiency by 5-8% over competing brands.
The JN series Kaishan compressor incorporates cutting-edge air inlet adjustment modules, cooling flow-field design, oil-air separation technology, and highly-efficient motors complemented by intelligent automation control systems. These innovations provide tangible energy savings, delivering consistent cost-reduction benefits to customers. When you choose Kaishan’s advanced two-stage compression technology, you're investing in reliability, efficiency, and superior performance.
EMAIL US INQUIRY

开山牌JN系列两极压缩螺杆压缩机参数
开山牌JN系列两极压缩螺杆压缩机参数
Kaishan JN Two-Stage Compression Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(kW) Power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height
JN100-6-II	0.6	16.55	75	DN65	2200	2760	1630	1735
JN100-7-II	0.7	15.80	75	DN65	2200	2760	1630	1735
JN100-8-II	0.8	14.65	75	DN65	2200	2760	1630	1735
JN100-10-II	1.0	13.70	75	DN65	2200	2760	1630	1735
JN120-6-II	0.6	21.68	90	DN80	2720	2760	1630	1735
JN120-7-II	0.7	20.15	90	DN80	2720	2760	1630	1735

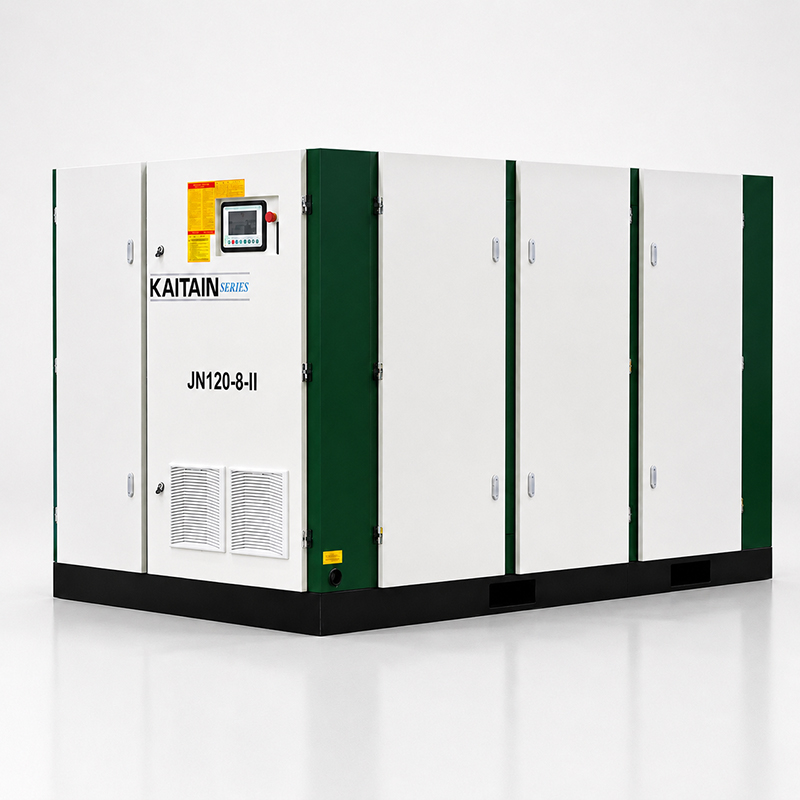

JN120-8-II	0.8	19.25	90	DN65	2700	2760	1630	1735
JN120-10-II	1.0	16.48	90	DN65	2700	2760	1630	1735
JN150-6-II	0.6	25.54	110	DN80	3300	2930	1810	1800
JN150-7-II	0.7	24.02	110	DN80	3300	2930	1810	1800
JN150-8-II	0.8	23.00	110	DN80	3300	2930	1810	1800
JN150-10-II	1.0	20.10	110	DN80	3300	2930	1810	1800
JN180-6-II	0.6	32.88	132	DN100	4380	3160	1810	2080
JN180-7-II	0.7	28.55	132	DN100	3560	2930	1810	2080
JN180-8-II	0.8	26.90	132	DN80	3460	2930	1810	1800
JN180-10-II	1.0	23.94	132	DN80	3460	2930	1810	1800
JN215-6-II	0.6	38.07	160	DN100	4900	3310	1980	2100
JN215-7-II	0.7	36.60	160	DN100	4900	3310	1980	2100
JN215-8-II	0.8	34.31	160	DN100	4900	3310	1980	2100
JN215-10-II	1.0	28.46	160	DN100	4900	3310	1980	2100
JN250-6-II	0.6	45.26	185	DN100	5040	3310	1980	2230
JN250-7-II	0.7	41.10	185	DN100	4950	3310	1980	2100
JN250-8-II	0.8	39.80	185	DN100	4950	3310	1980	2100
JN250-10-II	1.0	34.31	185	DN100	4950	3310	1980	2100
JN270-6-II	0.6	47.90	200	DN100	5050	3310	1980	2230
JN270-7-II	0.7	45.28	200	DN100	5050	3310	1980	2230
JN270-8-II	0.8	43.12	200	DN100	5000	3310	1980	2100
JN270-10-II	1.0	36.60	200	DN100	5000	3310	1980	2100
JN295-6-II	0.6	55.90	220	DN100	6350	3510	2160	2250
JN295-7-II	0.7	50.26	220	DN100	6350	3510	2160	2250
JN295-8-II	0.8	47.48	220	DN100	5680	3510	2160	2250
JN295-10-II	1.0	41.02	220	DN100	5680	3510	2160	2250
JN335-6-II	0.6	59.70	250	DN125	6930	3510	2160	2250
JN335-7-II	0.7	56.00	250	DN125	6930	3510	2160	2250
JN335-8-II	0.8	52.50	250	DN100	6550	3510	2160	2250
JN335-10-II	1.0	45.00	250	DN100	6550	3510	2160	2250
JN375-6-II	0.6	64.80	280	DN125	7260	4110	2310	2350
JN375-7-II	0.7	63.20	280	DN125	7260	4110	2310	2350
JN375-8-II	0.8	60.50	280	DN125	7260	4110	2310	2350
JN375-10-II	1.0	55.70	280	DN125	7260	4110	2310	2350
JN420-7A-II	0.7	64.50	315	DN125	7260	4110	2310	2350
JN420-8A-II	0.8	63.00	315	DN125	7260	4110	2310	2350
JN420-6-II	0.6	73.30	315	DN125	8460	4110	2370	2525
JN420-7-II	0.7	66.70	315	DN125	8460	4110	2370	2525
JN420-8-II	0.8	64.80	315	DN125	7360	4110	2310	2350
JN420-10-II	1.0	59.10	315	DN125	7360	4110	2310	2350
JN475-6A-II	0.6	77.00	355	DN125	8560	4110	2370	2525
JN475-7A-II	0.7	73.20	355	DN125	8560	4110	2370	2525
JN475-8A-II	0.8	69.90	355	DN125	7460	4110	2310	2350
JN475-10A-II	1.0	62.10	355	DN125	7460	4110	2310	2350
JN475-6-II	0.6	80.90	355	DN150	11550	4350	2200	2580
JN475-7-II	0.7	77.20	355	DN150	11550	4350	2200	2580
JN475-8-II	0.8	73.00	355	DN150	11550	4350	2200	2580
JN475-10-II	1.0	64.50	355	DN150	10630	4350	2200	2580
JN535-7-II	0.7	86.70	400	DN150	11680	4350	2200	2580
JN535-8-II	0.8	80.50	400	DN150	11680	4350	2200	2580
JN535-10-II	1.0	73.20	400	DN150	11680	4350	2200	2580
JN600-8-II	0.8	92.60	450	DN150	11800	4350	2200	2580
JN600-10-II	1.0	80.20	450	DN150	11800	4350	2200	2580
