  • Kaishan LGCY High Pressure Diesel Portable Screw Air Compressor

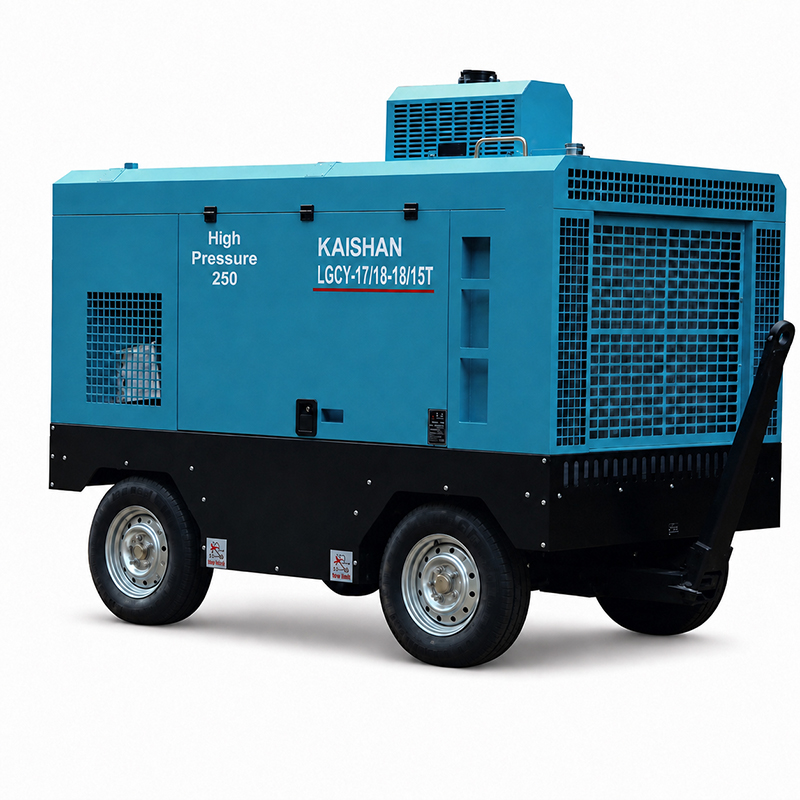

Kaishan LGCY High Pressure Diesel Portable Screw Air Compressor

  • Kaishan high pressure series mobile screw air compressor,saving oil for 100L every day!
    Triple air filter system / Triple oil-gas separation system.
    Lubricating oil filter with precision of 10μ, Efficient cooling system.
    Axial-flow inlet valve, Fully closed chassis and quiet housing design.
    With single-point lifting ring on the top, it is easy to handle; heavy duty mobile chassis.
    Microcomputer control system interface; Special lubricating oil for compressor.
  • EMAIL US   INQUIRY

Specifications of LGCY High Pressure Diesel Portable Screw Air Compressor

 Model

PressureMpa)

Capacity(m3/min)

Motor Power(KW)

Outlet

Weight(KG)

Dimensions(MM)

LGCY-550/14T

1.4

15

132

G1/2×1G3/4×1

2800

3600×1600×2220

LGCY-550/14AT

1.4

15

140

G1/2×1G3/4×1

2800

3600×1600×2220

LGCY-650/18T

1.8

18

194

G2×1G3/4×1

3700

3980×1800×2230

LGCY-650/18AT

1.8

18

191

G2×1G3/4×1

3700

3980×1800×2230

LGCY-800/20(Yuchai)

2

23

250

G2×1G3/4×1

4850

4600×1950×2850

LGCY-800/20(Cummins)

2

23

239

G2×1G3/4×1

4850

4600×1950×2850

LGCY-26/25

2.5

26

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-26/25A

2.5

26

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-21/35

3.5

21

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-21/35A

3.5

21

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-33/25

2.5

33

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-33/25A

2.5

33

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-26/35

3.5

26

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-26/35A

3.5

26

404

G2×1G3/4×1

6800

4700×2100×2500

LGCY-39/25

2.5

39

511

G2×1G3/4×1

7200

5000×2200×2900

LGCY-39/25A

2.5

39

478

G2×1G3/4×1

7200

5000×2200×2900

LGCY-33/35

2.5

33

511

G2×1G3/4×1

7200

5000×2200×2900

LGCY-33/35A

3.5

33

478

G2×1G3/4×1

7200

5000×2200×2900

LGCY-19.5/19(Cummins)

1.9

19.5

194

G2×1G3/4×1

3700

3980×1800×2650

LGCY-19.5/19A(Yuchai)

1.9

19.5

250

G2×1G3/4×1

3700

3980×1800×2650
