开山LGCY系列柴油移动螺杆压缩机相关参数 | ||||||||
Kaishan LGCY Series Diesel Portable Screw Air Compressor Specifications | ||||||||
型号 | 排气压力(MPa) | 排气量(m³/min) | 功率(HP) | 排气接口 | 重量(kg) | 长(mm) | 宽(mm) | 高(mm) |
LGCY-5/8XN | 0.8 | 5.0 | Xichai 50HP | G1×1,G½×1 | 740 | 1660 | 1020 | 1610 |
LGCY-5/8XN-G2 | 0.8 | 5.0 | Xichai 56HP | G1×1,G½×1 | 740 | 1660 | 1020 | 1610 |
LGCY-6/7X | 0.7 | 6.0 | Xichai 75HP | G1¼×1,G¾×1 | 1400 | 3240 | 1760 | 1850 |
LGCY-9/7 | 0.7 | 9.0 | Yuchai 120HP | G1¼×1,G¾×1 | 1550 | 3240 | 1760 | 1785 |
LGCY-12/10 | 1.0 | 12.0 | Yuchai 160HP | G1¼×1,G¾×1 | 1880 | 3300 | 1880 | 2100 |
LGCY-12/10K-G2 | 1.0 | 12.0 | Cummins 150HP | G1¼×1,G¾×1 | 1800 | 3500 | 1850 | 2100 |

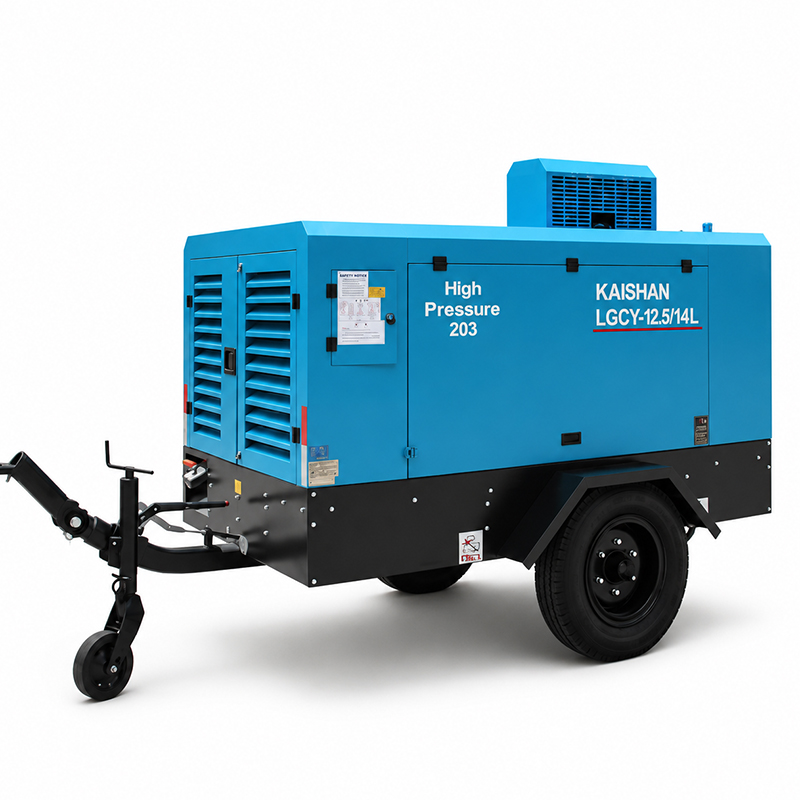

LGCY-12.5/14KL | 1.4 | 12.5 | Cummins 180HP | G2×1,G¾×1 | 2280 | 3500 | 1980 | 2200 |
LGCY-22/8K | 0.8 | 22.0 | Cummins 260HP | G2×1,G¾×1 | 4000 | 3764 | 1800 | 2213 |
LGCY-27/10 | 1.0 | 27.0 | Yuchai 340HP | G2×1,G¾×1 | 4800 | 4300 | 1950 | 2900 |
LGCY-27/10K | 1.0 | 27.0 | Cummins 360HP | G2×1,G¾×1 | 5000 | 4600 | 1950 | 2850 |
LGCY-32/10 | 1.0 | 32.0 | Yuchai 400HP | G2×1,G¾×1 | 5000 | 4600 | 1950 | 2850 |
LGCY-32/10K | 1.0 | 32.0 | Cummins 360HP | G2×1,G¾×1 | 5000 | 4600 | 1950 | 2850 |
LGCG-45/8 | 0.8 | 45.0 | Yuchai 400HP | G2×2,G¾×1 | 5184 | 3800 | 2230 | 2070 |
