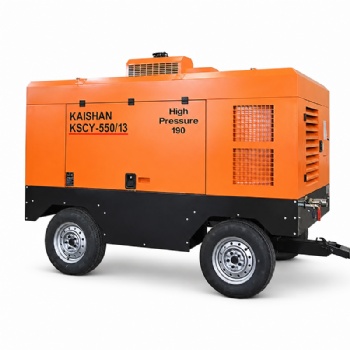

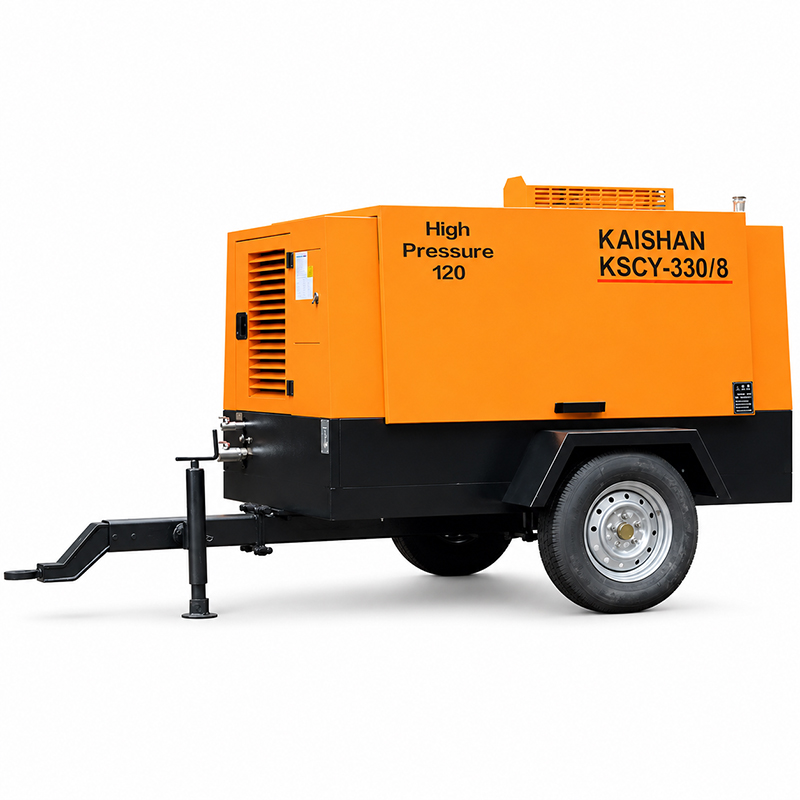

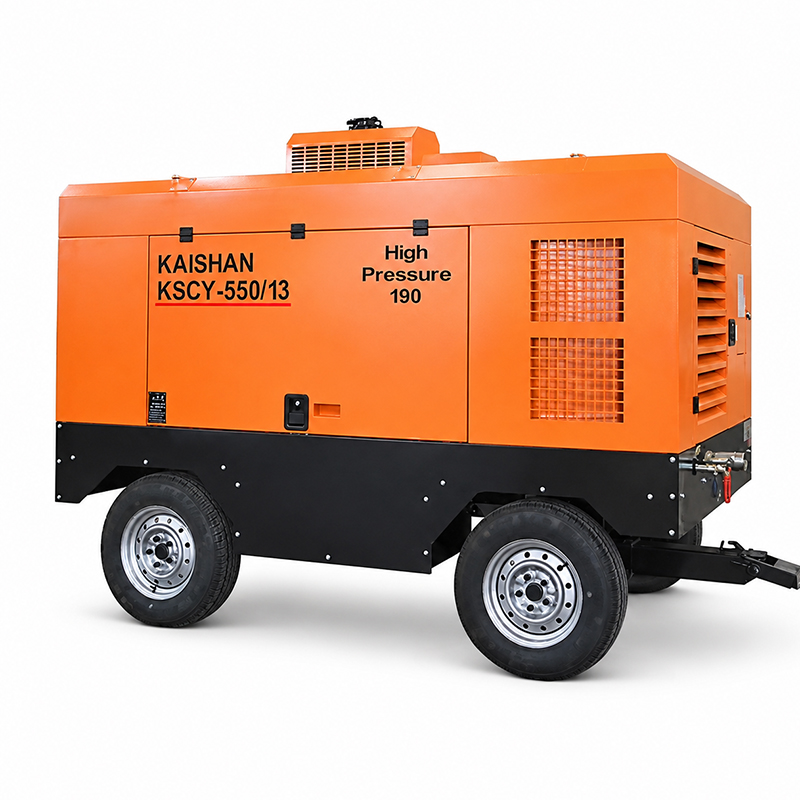

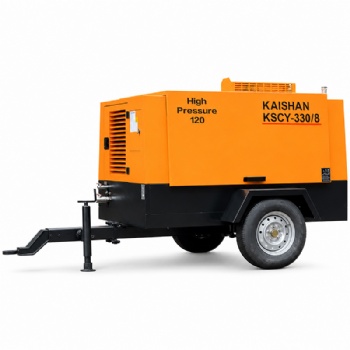

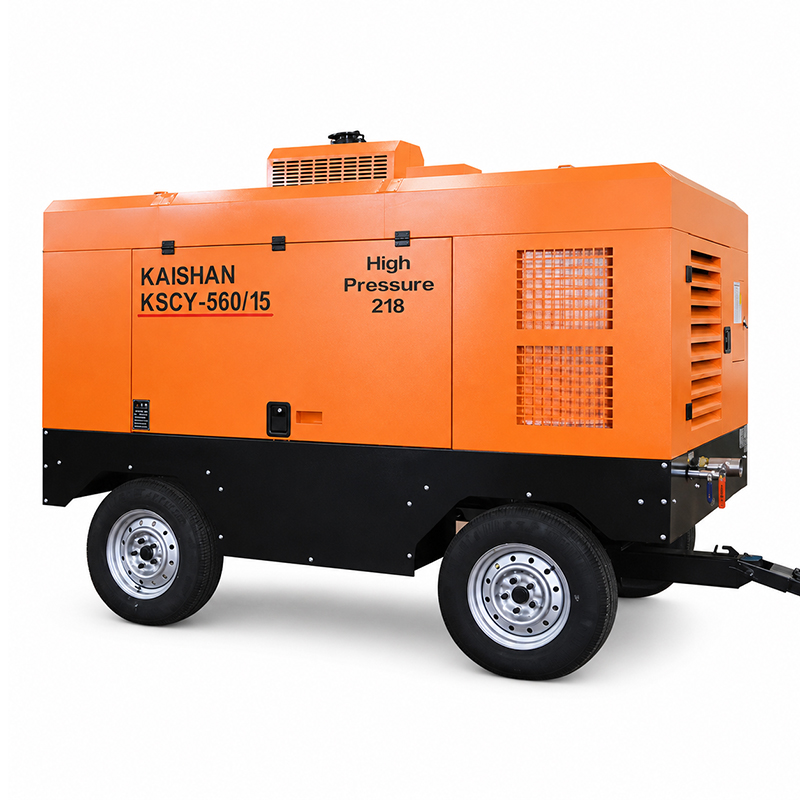

Kaishan KSCY Series Diesel Portable Screw Air Compressor

Kaishan KSCY Series Diesel Portable Screw Air Compressor

Kaishan KSCY series diesel portable screw air compressors are equipped with SKY patented profile rotors and heavy-duty dedicated diesel engines (such as Yuchai and Cummins), achieving the optimal combustion state across the entire engine speed range. Combined with a silent enclosure design, they offer powerful performance, high reliability, and low-noise operation.
The automatic air capacity control system steplessly adjusts the intake volume and engine speed according to the working pressure, perfectly matching the air supply with the air consumption for superior fuel economy.
The units feature a compact and lightweight overall structure, allowing for flexible on-site mobility. Equipped with spacious openable doors and windows, maintenance parts such as air filters, oil filters, and oil separators are easily accessible, effectively reducing downtime for maintenance and repair.
EMAIL US INQUIRY

开山KSCY系列柴油移动螺杆压缩机相关参数
开山KSCY系列柴油移动螺杆压缩机相关参数
Kaishan KSCY Series Diesel Portable Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(HP) power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height
KSCY-175/8X	0.8	5.0	Xichai 50HP	G1×1,G1½×1	970	2500	1350	1500
KSCY-175/8X-G2	0.8	5.0	Xichai 56HP	G1×1,G1½×1	970	2500	1350	1500
KSCY-220/8X	0.8	6.0	Xichai 75HP	G1¼×1,G¾×1	1400	3240	1760	1850
KSCY-330/8	0.8	9.0	Yuchai 120HP	G1½×1,G¾×1	1550	3080	1760	1850
KSCY-330/8K	0.8	9.0	Cummins 125HP	G1¼×1,G¾×1	1550	3080	1760	1850
KSCY-425/10	1.0	12.0	Yuchai 160HP	G1½×1,G¾×1	1880	3300	1880	2100
KSCY-425/10K-G2	1.0	12.0	Cummins 150HP	G1½×1,G¾×1	1963	3500	1850	2100
KSCY-400/14.5	1.5	11.0	Yuchai 160HP	G1½×1,G¾×1	1880	3300	1880	2100
KSCY-400/14.5K-G2	1.5	11.0	Cummins 150HP	G1½×1,G¾×1	1800	3500	1850	2100
KSCY-550/13	1.3	15.0	Yuchai 190HP	G2×1,G¾×1	2400	3000	1520	2200
KSCY-550/13K-G2	1.3	15.0	Cummins 180HP	G2×1,G¾×1	2050	3000	1520	2200
KSCY-180/15.5K-G2	1.6	15.0	Cummins 180HP	G2×1,G¾×1	2050	3000	1520	2200
KSCY-180/15.5-G2	1.6	15.0	Yuchai 180HP	G2×1,G¾×1	2200	3000	1520	2200
KSCY-570/12-550/15	1.2-1.5	16-15	Yuchai 190HP	G2×1,G¾×1	2240	3020	1520	2180
KSCY-570/12-550/15K	1.2-1.5	16-15	Cummins 180HP	G2×1,G¾×1	2200	3020	1520	2180
KSCY-560/15	1.5	16.0	Yuchai 220HP	G2×1,G¾×1	2400	3000	1520	2200
KSCY-560/15K	1.5	16.0	Cummins 210HP	G2×1,G¾×1	2200	3000	1520	2232
KSCY-650/20-700/17T	2.0-1.7	18-19	Yuchai 260HP	G2×1,G¾×1	2800	3000	1520	2390
KSCY-650/20-700/17TK	2.0-1.7	18-19	Cummins 260HP	G2×1,G¾×1	2700	3000	1520	2390
KSCY-750/20-800/17T	2.0-1.7	20-22	Yuchai 310HP	G2×1,G¾×1	2850	3100	1520	2400
KSCY-24/23	2.3	24.0	Yuchai 340HP	G2×1,G¾×1	4450	3500	1950	2030
KSCY-310/22	2.2	21.0	Yuchai 310HP	G2×1,G¾×1	3300	4300	2090	2470
KSCY-310/22X	2.2	21.0	Xichai 310HP	G2×1,G¾×1	3400	4300	2090	2470
KSCY-920/10	1.0	26.0	Yuchai 260HP	G2×1,G¾×1	2720	3120	1520	2400
KSCY-920/10K	1.0	26.0	Cummins 260HP	G2×1,G¾×1	2700	3120	1520	2400
KSCY-240/20-G2	2.0	18.5	Yuchai 240HP	G2×1,G¾×1	2757	3155	1525	2415
KSCY-215/19-G2	1.9	18.5	Cummins 215HP	G2×1,G¾×1	2732	3200	1520	2405
