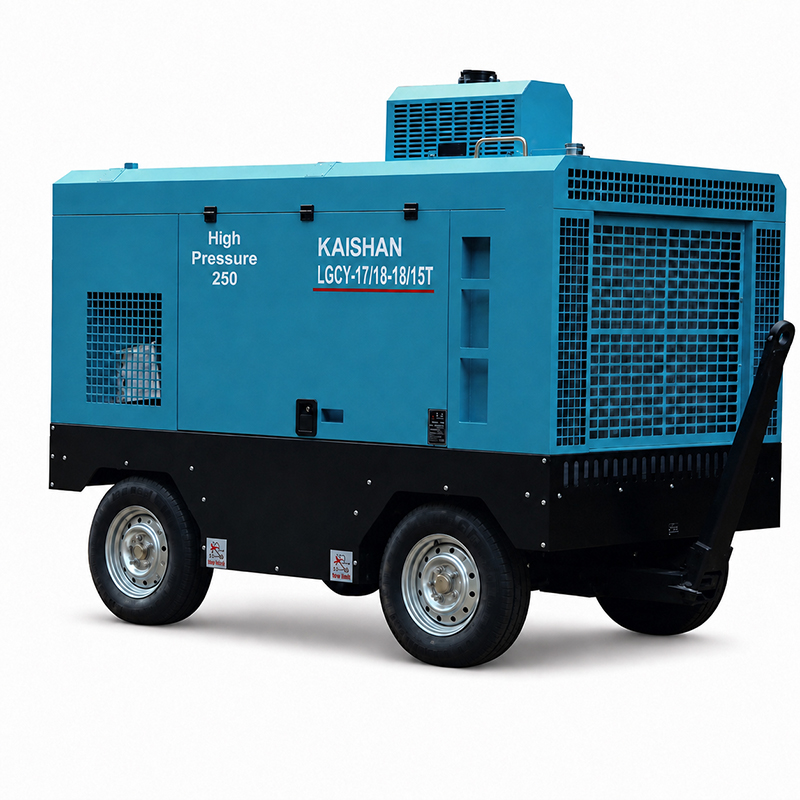

Kaishan LGCY Series High Pressure Diesel Portable Screw Air Compressor

Power your outdoor operations with the Kaishan LGCY series portable screw air compressor. Equipped with a patented SKY direct-drive airend and heavy-duty Cummins or Yuchai diesel engines, this rugged diesel air compressor delivers unmatched fuel efficiency, strong power, and reliable performance in demanding environments.
Engineered for extreme conditions, the unit features a 3-stage oil-gas separation system (ensuring <3 ppm oil content), multi-stage air filtration, and an efficient cooling system. Optional low-temperature starting and smart IoT remote monitoring ensure seamless high-altitude and severe-weather performance. Choose this dependable Kaishan compressor for mining, construction, and road projects.
EMAIL US INQUIRY

开山LGCY系列高风压柴油移动螺杆式空气压缩机参数
开山LGCY系列高风压柴油移动螺杆式空气压缩机参数
Kaishan LGCY Series High Pressure Diesel Portable Screw Air Compressor Specifications

型号 Model	排气压力(MPa) Working pressure	排气量(m³/min) Capacity	功率(HP) power	排气接口 Outlet size	重量(kg) Weight	长(mm) Length	宽(mm) Width	高(mm) Height
LGCY-11/18T	1.8	11	Yuchai 160HP	G1½×1,G¾×1	2100	3500	2000	1930
LGCY-15/18-17/12T	1.8-1.2	15-17	Yuchai 190HP	G2×1,G¾×1	2200	3000	1520	2300
LGCY-17/18-18/15T	1.8-1.5	17-18	Yuchai 220HP	G2×1,G¾×1	2500	3000	1520	2300
LGCY-17/18-18/15TK	1.8-1.5	17-18	Cummins 210HP	G2×1,G¾×1	2375	3000	1520	2300
LGCY-19/21-21/18	2.1-1.8	19-21	Yuchai 260HP	G2×1,G¾×1	3600	3300	1700	2350
LGCY-19/21-21/18K	2.1-1.8	19-21	Cummins 260HP	G2×1,G¾×1	3600	3300	1700	2350
LGCY-21/21-23/18	2.1-1.8	21-23	Yuchai 310HP	G2×1,G¾×1	3900	3300	1800	2300
LGCY-23/23-25/18	2.3-1.8	23-25	Yuchai 340HP	G2×1,G¾×1	4850	4150	1950	2850
LGCY-23/23-25/18K	2.3-1.8	23-25	Cummins 360HP	G2×1,G¾×1	4850	4150	1950	2850
LGCY-27/25-29/18	2.5-1.8	27-29	Yuchai 400HP	G2×1,G¾×1	4500	4000	1950	2650
LGCY-25/23-27/18K	2.3-1.8	25-27	Cummins 360HP	G2×1,G¾×1	4850	4150	1950	2850
LGCY-26/25	2.5	26	Yuchai 560HP	G2×1,G¾×1	6800	4700	2160	2650
LGCY-26/25K	2.5	26	Cummins 550HP	G2×1,G¾×1	6800	4700	2160	2650
LGCY-33/25	2.5	33	Yuchai 560HP	G2×1,G¾×1	6800	4700	2160	2650
LGCY-33/25K	2.5	33	Cummins 550HP	G2×1,G¾×1	6800	4700	2160	2650
LGCY-39/25	2.5	39	Cummins 700HP	G2×1,G¾×1	7110	4850	2160	2970
LGCY-39/25A	2.5	39	Caterpillar 700HP	G2×2	8000	5000	2200	2850
LGCY-33/35	3.5	33	Cummins 700HP	G2×1,G¾×1	7110	4850	2160	2970
LGCY-33/35A	3.5	33	Caterpillar 650HP	G2×2	8000	5000	2200	2850
LGCY-45/25-37/35V	2.5-3.5	37-45	Volvo 769HP	G2×1,G¾×1	8478	5060	2240	2795
LGCY-45/25-37/35	2.5-3.5	37-45	Yuchai 775HP	G2×1,G¾×1	8478	5060	2240	2795
LGCY-30/8TK	0.8	30	Cummins 260HP	G2½×1,G¾×1	3200	3600	1800	2480
LGCY-25/10TK	1.0	25	Cummins 260HP	G2½×1,G¾×1	3200	3600	1800	2480
LGCY-21/13TK	1.3	21	Cummins 260HP	G2½×1,G¾×1	3200	3600	1800	2480
LGCY-19/21-21/18X	2.1-1.8	19-21	Xichai 280HP	G2×1,G¾×1	3750	4900	2090	2670
